LED controller Manual for Screen Manufacturer

1, Controller connectors

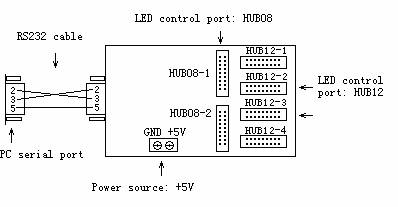

1>: sketch map

Figure 1, Controller connectors sketch map

2>: LED control port



Figure HUB08   Figure 3, HUB12

2, Software setup

1>: Software Runtime Environment

operating system Windows2000/XP/Vista/7

2>: Software setup

Click  ”PowerLed_setup.exe” on the CD-ROM to setup the application!

Figure 4: Application icon

3 Software Settings

This step is to set the LED screen parameters.

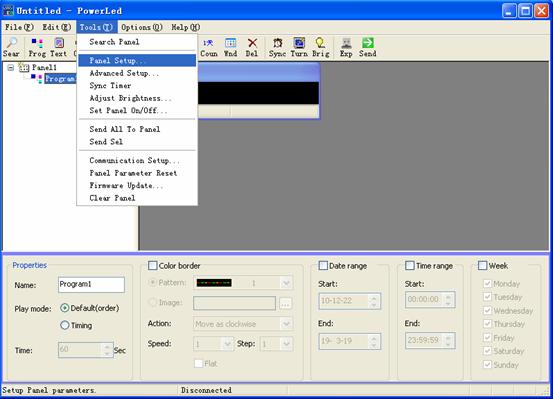

1>: Click menu 'Tools'->”Panel Setup” . as shown in Figure 5

Figure 5, To enter 'Panel Setup'

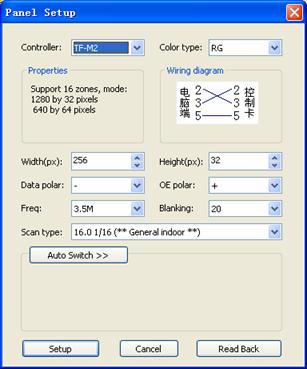

2>: In the 'Panel Setup' window, You can set the screen columns(Width) and rows(Height), and color type .

Figure 6, panel setup window

Software interface

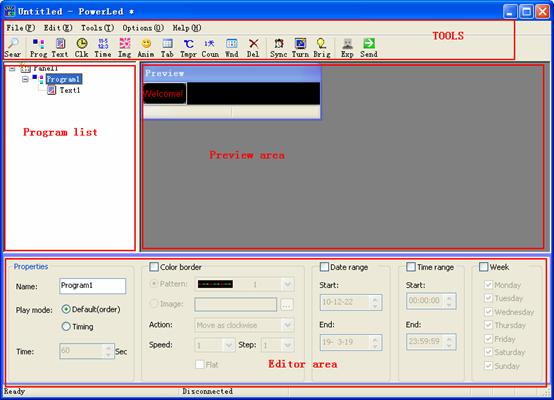

1>: Software overview

2>: The 4 steps for use software

Step1: Search panel by button

Step2: Setup panel parameters.

Step3: Add and edit some programs and messages

Step4: Send programs by button , or export programs to USB disk by button for TF-MU
