Usb card reader user manual

USB Card Reader

USER MANUAL

Brief Introduction

Product Features

System Requirement

Driver

Check the installation result

Uninstall Driver

1. Brief Introduction

This is a memory cardst¯ Reader/Writer device, which can read and write information from CF / MD / XD / SM / MMC / SD / MS cards. For example, your computer can read and store all the photos via this device after you take photos by Digital camera. 2. Product Features

tù Plug and play , compliant with USB specification 2.0 tù Bus powered from Ethernet USB Port
tù Compact and portable shape
tù Support Windows 98SE / ME / 2000 / XP and Mac OS/vista
tù Only under Windows 98SE/ME operating system , it needs driver

3. System Requirement

t¤         IBM PC and compatible 486DX-100 MHz CUP or higher .

t¤         Available USB port

t¤         CD-ROM Drive

t¤         At least 16MB storage

4. USB Card Reader installation process

Please follow the below process to install USB Card Reader Driver £s

Start your computer and check if the USB port is available and runs well .

During installation , please dont¯t link USB Card Reader with your computer .

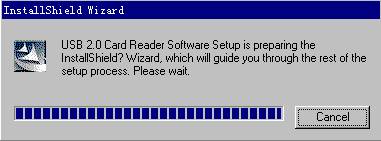

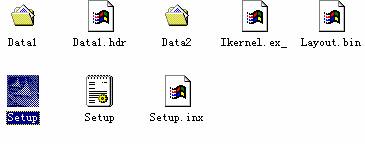

Double click t® setup.exe t¯ ( image 1 ) , then it will show the following installation interface ( image 2 / image 3 )

Images

( Images

( Images

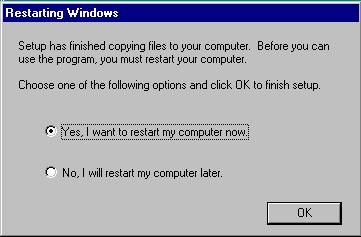

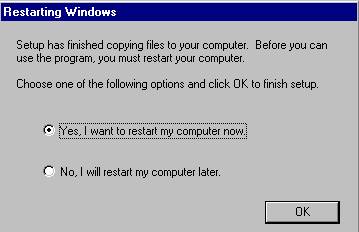

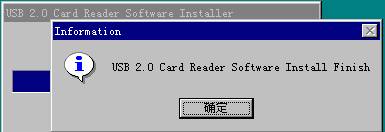

After installation , click t® OK t¯ ( image ) , restart your computer .

( Images4

Please connect the USB card reader to a spare USB port on your computer after you restart it , system will detect the USB card reader and install its driver automatically.

Check the installation result

1. Please use the right-key to click t® My Computer t¯ , and choose t® Properties t¯ to open t® System Properties t¯ ( image

(Images

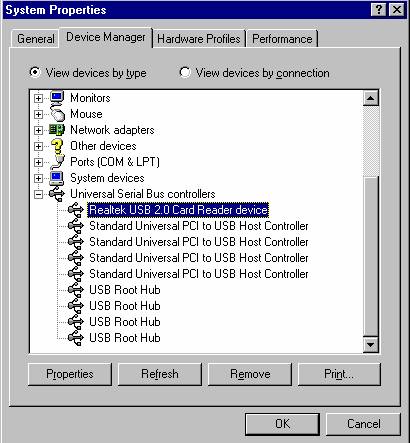

If you see t®Realtek USB Card Reader device t¯ from t°Universal Serial Bus controllerst± , it means you installed the driver successfully . ( image

(Images

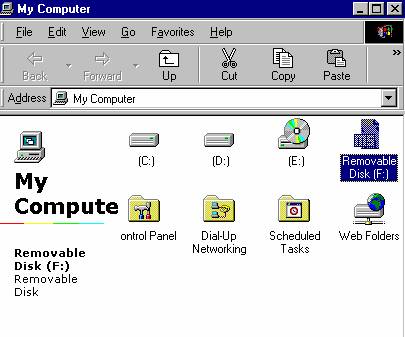

Double click t® My Computer t¯ ( image ) in your desktop , you can see icons ( image ) in it

(Images

(Images

Uninstall USB card readert¯s driver

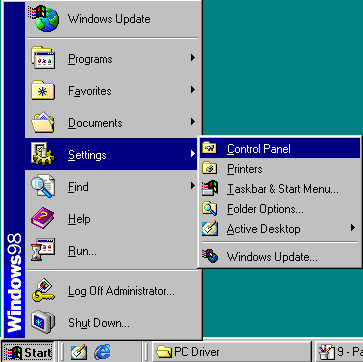

please follow the path t° Start t± / t° Settings t± / t° Control Panel t± / t° Add Remove Programst± (Images t¢ ), Opent° Add/Remove Programs t±window (Images14)

(Images

(Images1

Please choose t°Realtek USB Card Reader Software t±, and then click t°Add / Remove (R) t±in the down right conner (Images1

(Images1

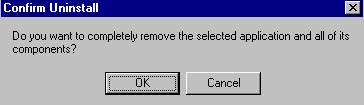

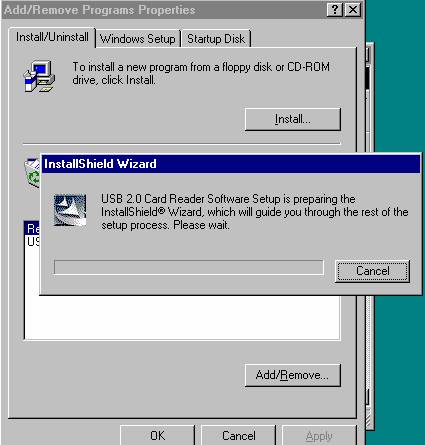

Click t° OK t± , just follow the uninstalling program cue to uninstall USB card readert¯s driver (Images t¢ t¢

(Images1

(Images1

(Images1
